GEDA 500Z

Features & benefits

The 500Z has proven itself as a reliable transport helper over many years, with its spacious platform large enough to accommodate two wheelbarrows side by side.

This powerful material hoist offers sufficient space for construction materials up to a weight of 500kg.

The platform can be swivelled by 90 degrees allowing safe and comfortable loading and unloading at the landing levels.

  • Maximum height up to 100m.
  • Safe working load of 500kg.
  • Climbing speed 30 m/min.
  • Safe mechanical landing gates.
  • Transported by trailer.
  • Can be paired with our 22kva generator.
  • Optional Load & Lock Scaffold Rack.

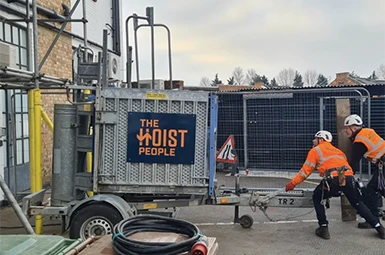

Towed to the site by trailer

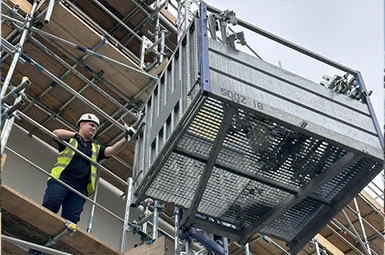

Swinging in platform

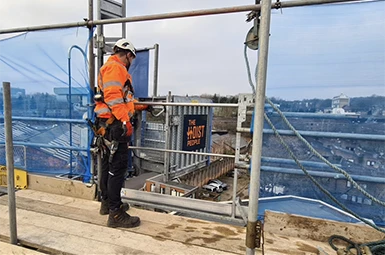

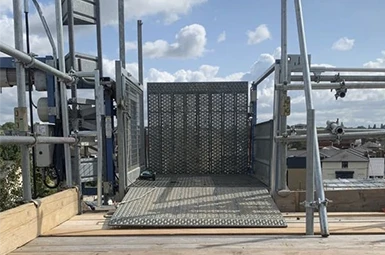

Hoist at the landing position

Technical data

Maximum Height
Lifting Capacity - Goods Mode
Lifting Capacity - Personnel Mode
Lifting Speed - Goods Mode
Lifting Speed - Personnel Mode
Power Source
Breaker Rating
Power Requirements
Start up Current (Max)
Running Current (Max)
Cage Dimensions (Internal)
Approx. Ground Space Required
Approx. Minimum Access Required
Approx. Gate Opening Dimensions
Geda 500z
100m
500kg
n/a
30 m/min
n/a
415v Electric
32a Three Phase C Type MCB
Dedicated 415v 32a Commando Socket
60a
13.8a
W 1400mm - L 1600mm
2700mm x 3000mm
W 2300mm - H 2600mm - L 4500mm
2000mm +
