GEDA 300Z

Features & benefits

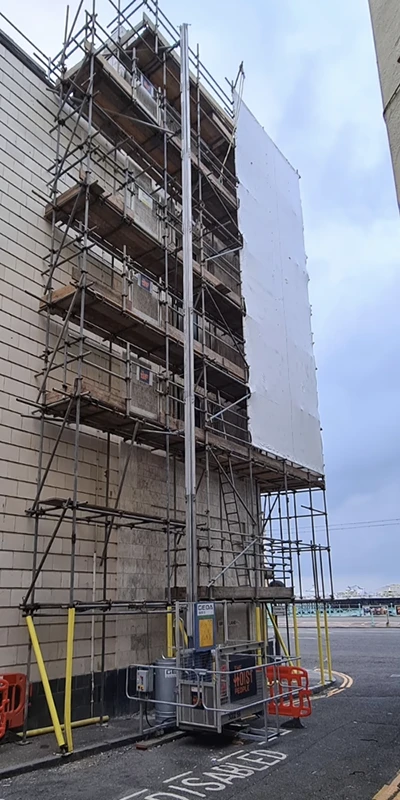

The GEDA 300Z is a compact and robust hoist lifting up to 300kg of goods on-site.

The hoist can be fitted with a scaffold/sheet frame to enable the safe lifting of scaffolding and sheet materials.

Once at the landing level, the cage can be swivelled by 90 degrees to the left allowing a safe loading and unloading.

The hoist is available in 240v or 415v versions to suit the power supply on-site.

  • 240v or 415v electric options. hoist
  • Up to 100m in height (415v) or 50m (240v).
  • Safe working load (SWL) 300kg.
  • Hoisting speed 20m/min (240v), 30m/min (415v).
  • Optional Load & Lock Scaffold Rack.
  • Transported by trailer.
  • Can be paired with our 10kva generator.

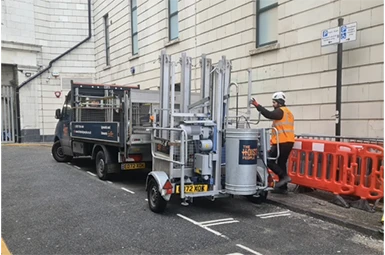

Towed to the site by trailer

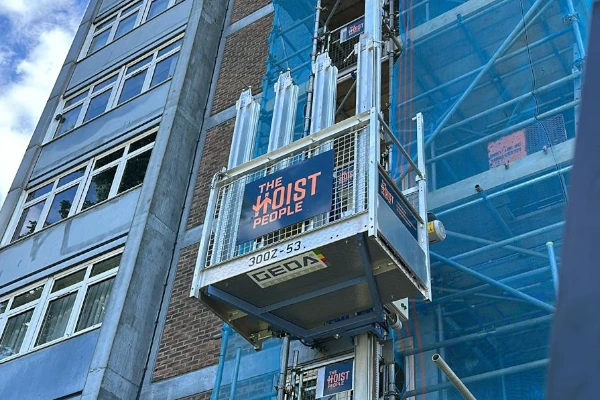

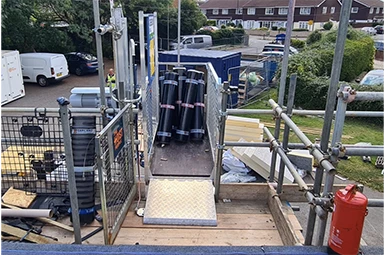

Hoist at the landing position

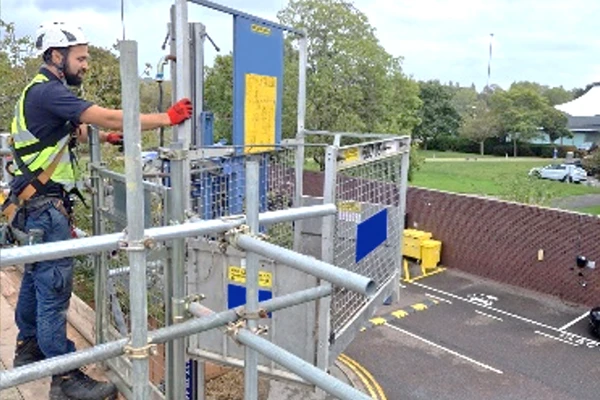

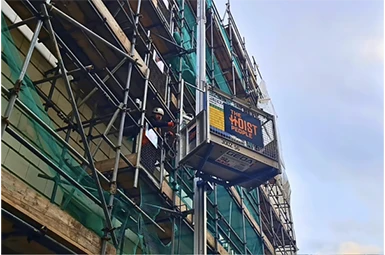

Swinging in platform

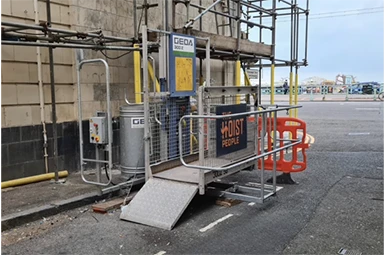

Loading at the base

Technical data

Maximum Height
Lifting Capacity - Goods Mode
Lifting Capacity - Personnel Mode
Lifting Speed - Goods Mode
Lifting Speed - Personnel Mode
Power Source
Breaker Rating
Power Requirements
Start up Current (Max)
Running Current (Max)
Cage Dimensions (Internal)
Approx. Ground Space Required
Approx. Minimum Access Required
Approx. Gate Opening Dimensions
Geda 300z Single Phase 240v
50m
300kg
n/a
20 m/min
n/a
240v Electric
16a Single Phase C Type MCB
Dedicated 240v 16a Commando Socket
35a
7.7a
W 800mm - L 1400mm
2000mm x 2000mm
W 2100mm - H 3000mm - L 2400mm
1200mm +
Geda 300z Three Phase 415v
100m
300kg
n/a
30 m/min
n/a
415v Electric
32a Three Phase C Type MCB
Dedicated 415v 32a Commando Socket
45a
5.5a
W 800mm - L 1400mm
2000mm x 2000mm
W 2100mm - H 3000mm - L 2400mm
1200mm +

Related Products

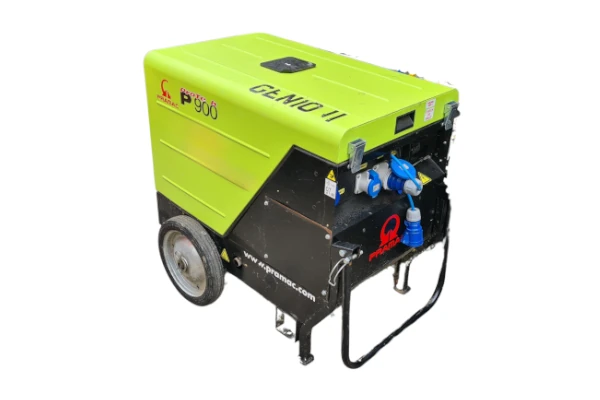

10 Kva Generator

Fence Panels

Rubbish Chutes

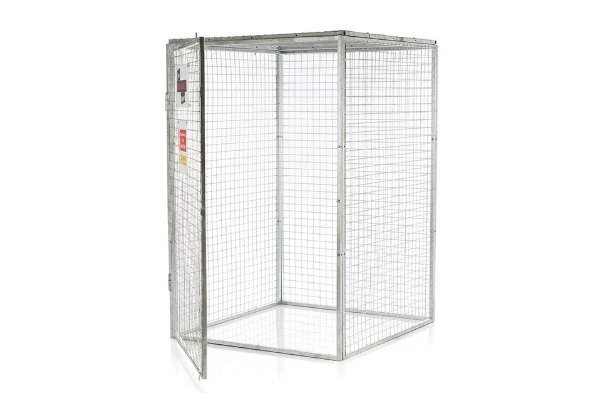

Gas Cages
