Features & benefits

The GEDA 300Z/ZP transport platform offers a multitude of advantages. Its compact design, measuring only 0.85m when folded, ensures transportation to almost any construction site, even passing through a narrow passageway.

This hoist is ideal for tight spaces and up onto scaffold gantries with its small 1.35 x 0.95m platform and flat cable bin.

With two separate controls, this material hoist can be easily transformed into a transport platform,
approved for carrying up to three passengers.

The 300Z/ZP is also available as a 240v single-phase version.

  • 3 phase 415v or single phase 240v power supply.
  • lifting speed 12 m/min (415v) 9 m/min (240v).
  • Load capacity 300kg (240v) or 500kg (415v).
  • Compact and quick to install especially through a
    narrow gate of 0.85m.
  • Height Range to 50m.
  • Trailer delivery.

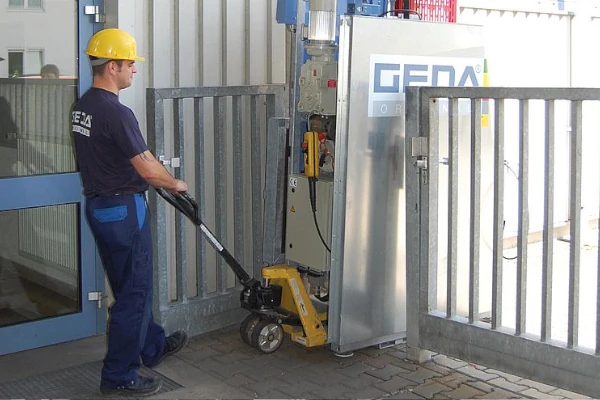

Folded to fit through narrow spaces

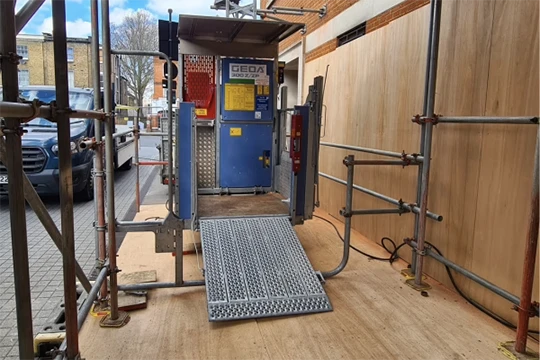

Loading the hoist at the base position

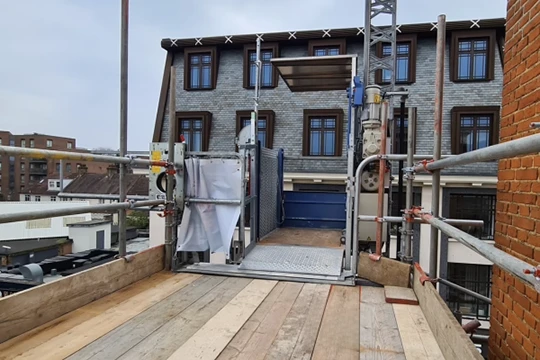

Hoist at the landing postion

Technical data

Maximum Height
Lifting Capacity - Goods Mode
Lifting Capacity - Personnel Mode
Lifting Speed - Goods Mode
Lifting Speed - Personnel Mode
Power Source
Breaker Rating
Power Requirements
Start up Current (Max)
Running Current (Max)
Cage Dimensions (Internal)
Approx. Ground Space Required
Approx. Minimum Access Required
Approx. Gate Opening Dimensions
Geda 300ZZP 240v Single Phase
50m
300kg
3 persons
12 m/min
9 m/min
240v Electric
32a Single Phase C Type MCB
Dedicated 240v 32a Commando Socket
31a
11a
W 950mm - L 1350mm
2700mm x 2700mm
W 850mm x L 1510mm x H 2300mm
2000mm +
Geda 300ZZP 415v Three Phase
50m
500kg
3 persons
12 m/min
12 m/min
415v Electric
32a Three Phase C Type MCB
Dedicated 415v 32a Commando Socket
23a
4.6a
W 950mm - L 1350mm
2700mm x 2700mm
W 850mm x L 15100mm x H 2300mm
2000mm +
