Features & benefits

The large loading capacity of the GEDA 1200 Z/ZP transport platform allows quick and safe transport of bulky and heavy construction materials.

Various platform configurations with different load capacities and sizes offer the right solution for any area of application and any challenges at a construction site.

The hoist can either be used as materials only at 24m/min, or with the additional roof piece, it can be used to transport persons at a speed of 12m/min.

Each unit is equipped with an overload sensor and side protection rails on the unloading ramp for safety.

Key Benefits:

  • 3 platform configurations.
  • Up to 130m high.
  • Load capacity: up to 1500kg / 7 passengers.
  • Lifting speed 12 m/min passenger.
  • Lifting speed 24 m/min materials.
  • Electro/mechanical interlocking gates.
  • Optional Load & Lock Scaffold Rack.

Double doors

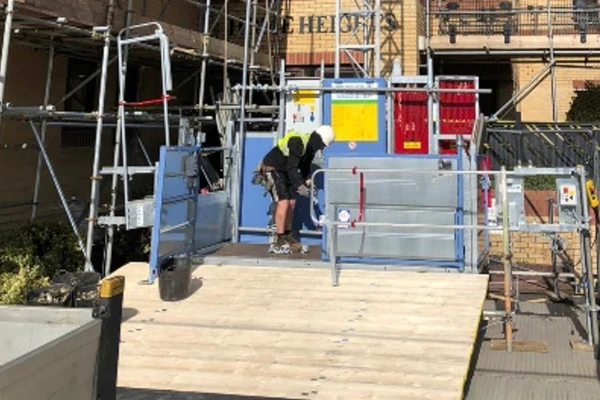

Hoist at the landing postion

Technical data

Maximum Height
Lifting Capacity - Goods Mode
Lifting Capacity - Personnel Mode
Lifting Speed - Goods Mode
Lifting Speed - Personnel Mode
Power Source
Breaker Rating
Power Requirements
Start up Current (Max)
Running Current (Max)
Cage Dimensions (Internal)
Approx. Ground Space Required
Approx. Minimum Access Required
Approx. Gate Opening Dimensions
Geda 1200Z/ZP Type A
130m
1500kg
7 persons
24 m/min
12 m/min
415v Electric
32a Three Phase C Type MCB
Dedicated 415v 32a Commando Socket
96a
17.6a
W 1400mm - L 2000mm
3500mm x 3700mm
Contact us
2000mm +
Geda 1200Z/ZP Type B
130m
1200kg
7 persons
24 m/min
12 m/min
415v Electric
32a Three Phase C Type MCB
Dedicated 415v 32a Commando Socket
96a
17.6a
W 1400mm - L 2600mm
4100mm x 3700mm
Contact us
2000mm +
Geda 1200Z/ZP Type C
130m
1000kg
7 persons
24 m/min
12 m/min
415v Electric
32a Three Phase C Type MCB
Dedicated 415v 32a Commando Socket
96a
17.6a
W 1400mm - L 3200mm
4700mm x 3700mm
Contact us
2000mm +
Geda 1200Z/ZP Type C Fixed Length
130m
1500kg
7 persons
24 m/min
12 m/min
415v Electric
32a Three Phase C Type MCB
Dedicated 415v 32a Commando Socket
96a
17.6a
W 1400mm - L 3200mm
4700mm x 3700mm
Contact us
2000mm +
