GEDA 1500Z/ZP BS

Features & benefits

A twin mast rack and pinion hoist.

The hoist can either be used as materials only at 24 m/min, or with the addition of a roof piece, it can be used to transport personnel at a speed of 12 m/min.

A bonus is the low pull force value of the tie, which allows the unit to be tied to the scaffold safely.

Key Benefits:

  • 7 Persons / 2000kg SWL.
  • Versatile ramp & platform configurations.
  • Two Devices in one – Materials & Transport Hoist.
  • Lifting speed of 24 m/min Goods Mode.
  • Lifting speed of 12 m/min Passenger Mode.
  • Very Spacious platform variations.
  • Electro/mechanical interlocking gates.
  • Less tie loading applied due to the double mast structure.
  • Optional Load & Lock Scaffold Rack.

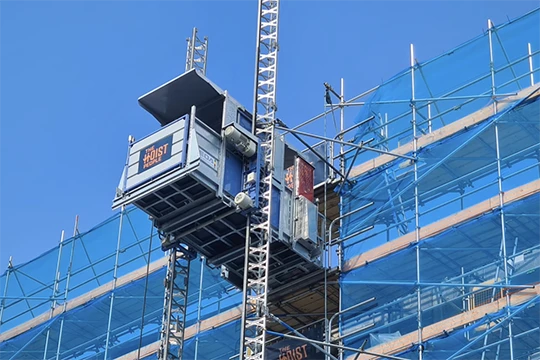

In operation with Passenger roof

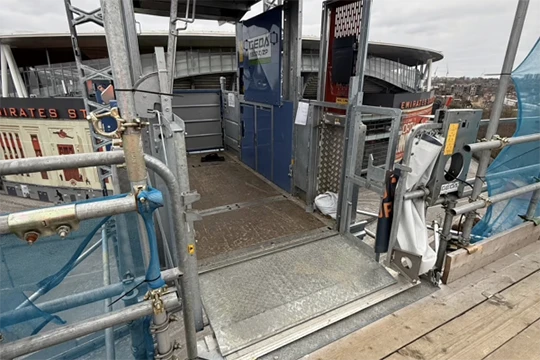

Hoist at the landing position

Hoist at the landing position

Technical data

Maximum Height
Lifting Capacity - Goods Mode
Lifting Capacity - Personnel Mode
Lifting Speed - Goods Mode
Lifting Speed - Personnel Mode
Power Source
Breaker Rating
Power Requirements
Start up Current (Max)
Running Current (Max)
Cage Dimensions (Internal)
Approx. Ground Space Required
Approx. Minimum Access Required
Approx. Gate Opening Dimensions
Geda 1500Z/ZP BS
100m
2000kg
7 persons
24 m/min
12 m/min
415v Electric
32a Three Phase C Type MCB
Dedicated 415v 32a Commando Socket
95a
27.6a
W 1450mm - L 3300mm
3600mm x 4700mm
Contact us
2000mm +
