MABER MB500

Features & benefits

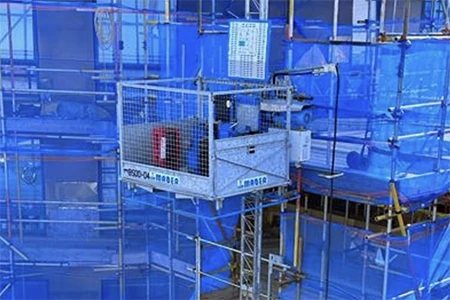

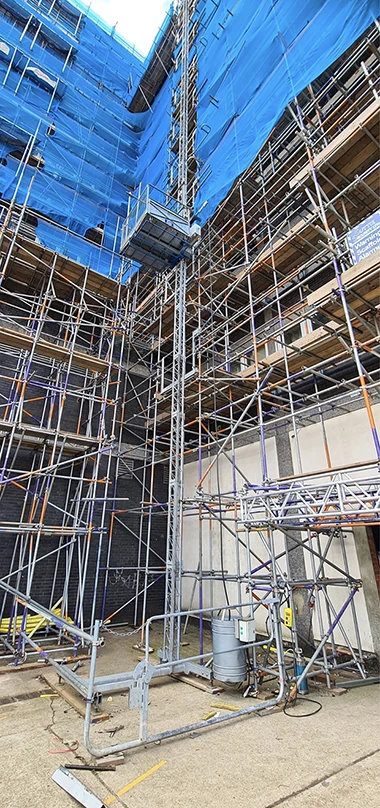

The MABER MB500 Hoist is a versatile and reliable choice for transporting building materials.

With a capacity of up to 500kg, it is ideal for bricklayers, stone masons, roofing contractors, and general builders. We fit fully interlocking Landing Gates, ensuring safety and convenience.

Additionally, the base unit can be taken apart enabling the hoist to be taken through a standard door, making it perfect for projects with limited access.

Key Benefits:

  • Maximum height up to 120 Metres.
  • Up to 500kg SWL (415v) and up to 300kg SWL (240v).
  • Climbing speed up to 25 m/min.
  • Can be erected as a fixed-lift or turning in 90º.
  • Fully Interlocking landing gates.
  • Can be paired with our 20kva generator.

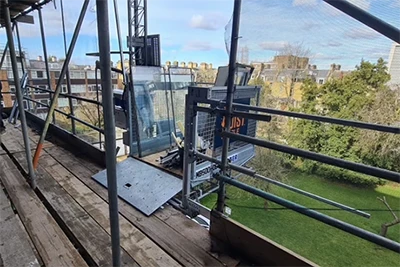

Hoist at landing level

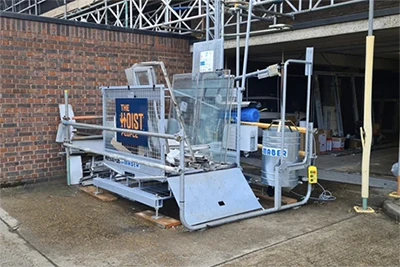

Hoist dismantled for tight access

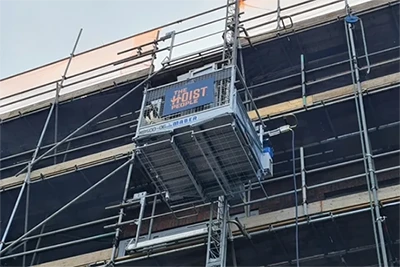

Hoist platform

Technical data

Maximum Height
Lifting Capacity - Goods Mode
Lifting Capacity - Personnel Mode
Lifting Speed - Goods Mode
Lifting Speed - Personnel Mode
Power Source
Breaker Rating
Power Requirements
Start up Current (Max)
Running Current (Max)
Cage Dimensions (Internal)
Approx. Ground Space Required
Approx. Minimum Access Required
Approx. Gate Opening Dimensions
Maber MB500 S 240v
120m
300kg
n/a
20 m/min
n/a
240v Electric
32a Single Phase C Type MCB
Dedicated 240v 32a Commando Socket
72a
18a
W 1000mm - L 1500mm
2930mm x 2600mm
Contact us
2000mm +
Maber MB500 SP 415v
120m
500kg
n/a
25 m/min
n/a
415v Electric
32a Three Phase C Type MCB
Dedicated 415v 32a Commando Socket
32a
12a
W 1000mm - L 1500mm
2390mm x 2600mm
Contact us
2000mm +
