Features & benefits

This hoist is designed for use in compact spaces and can be used simply as a material hoist or transport platform for passengers and materials.

The 500Z/ZP is very versatile enabling different ramp configurations to suit the requirements on site.

This unit can be delivered to its base position via a trailer without the need for a Hiab lorry when installed at ground level.

  • Hoist Transported by trailer.
  • Maximum height up to 100m.
  • 5 persons / 850kg – 1000kg SWL.
  • Lifting speed 12 m/min passenger.
  • Lifting speed 24 m/min materials.
  • Electro/mechanical interlocking gates.
  • Can be paired with our 22kva generator.
  • Optional Load and Lock Scaffold Rack attachment.

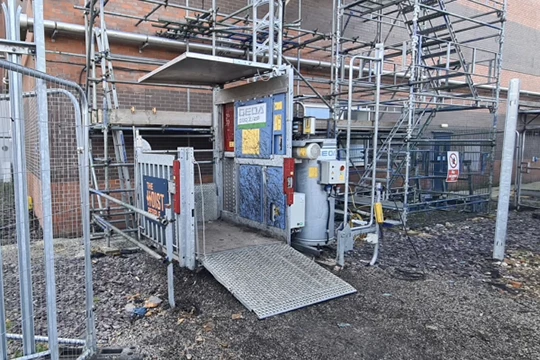

Loading the hoist at the base position

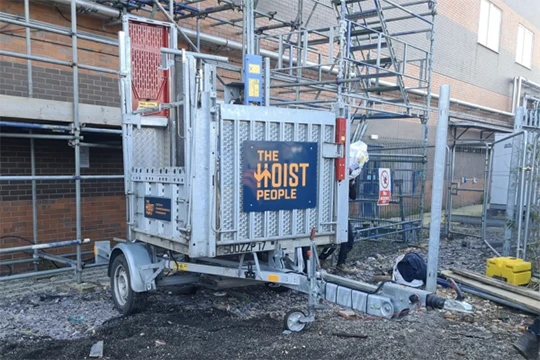

Towed to the site by trailer

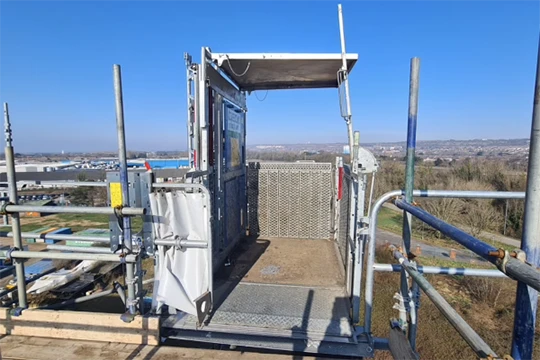

Hoist at the landing postion

Technical data

Maximum Height
Lifting Capacity - Goods Mode
Lifting Capacity - Personnel Mode
Lifting Speed - Goods Mode
Lifting Speed - Personnel Mode
Power Source
Breaker Rating
Power Requirements
Start up Current (Max)
Running Current (Max)
Cage Dimensions (Internal)
Approx. Ground Space Required
Approx. Minimum Access Required
Approx. Gate Opening Dimensions
Geda 500ZZP 415v Three Phase 850Kg
100m
850kg
5 persons
24 m/min
12 m/min
415v Electric
32a Three Phase C Type MCB
Dedicated 415v 32a Commando Socket
60a
13.8a
W 1400mm - L 1600mm
3000mm x 3000mm
W 2300mm x L 3000mm x H 4500mm
2000mm +
Geda 500ZZP 415v Three Phase 1000kg
50m
1000kg
5 persons
24 m/min
12 m/min
415v Electric
32a Three Phase C Type MCB
Dedicated 415v 32a Commando Socket
60a
13.8a
W 1400mm - L 1600mm
3000mm x 3000mm
W 2300mm x L 3000mm x H 4500mm
2000mm +
