GEDA 1500Z/ZP ED

Features & benefits

A twin mast rack and pinion hoist with different platform configurations.

The hoist can either be used as a materials hoist, or with the addition of a roof piece, it can be used to transport people.

Added bonus:
This hoist has a low pull value from the tie, which allows the unit to be tied to the scaffold safely. Each unit is equipped with an overload sensor and side protection rails on the unloading ramp for safety.

Key Benefits:

  • Full width entrance and exit to allow easy load with fork lift.
  • 7 Persons / 2000kg SWL.
  • Versatile ramp & platform configurations.
  • Lifting speed of 24 m/min Goods Mode.
  • Lifting speed of 12 m/min Passenger Mode.
  • Very Spacious platform variations.
  • Electro/mechanical interlocking gates.
  • Less tie loading applied due to the double mast structure.
  • Optional Load & Lock Scaffold Rack.

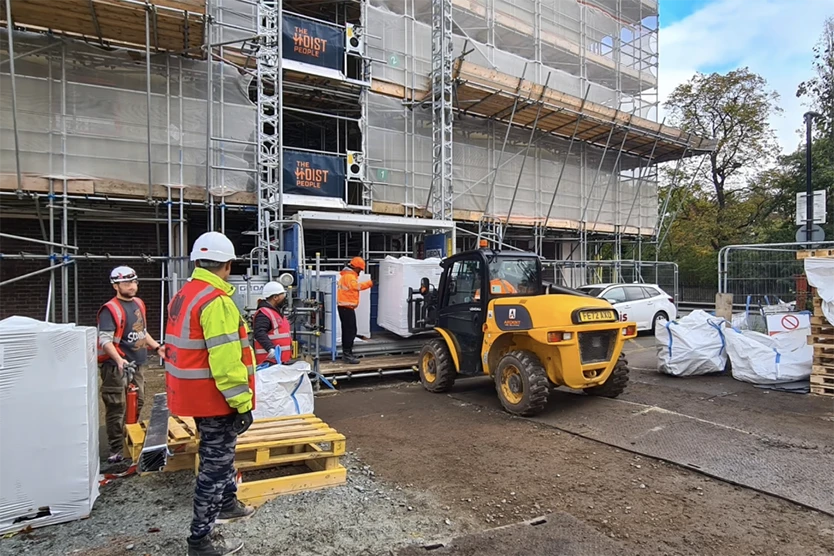

Loading double doors at the base

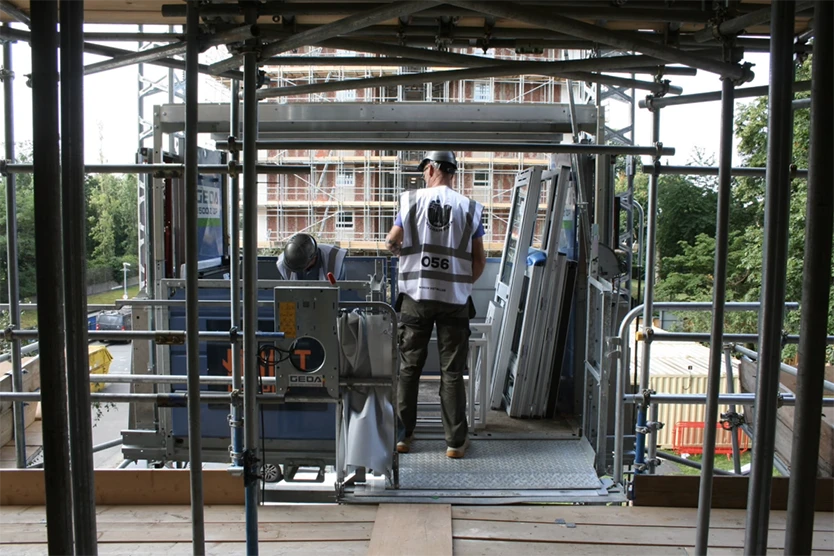

1500Z/ZP C at scaffolding level

Technical data

Maximum Height
Lifting Capacity - Goods Mode
Lifting Capacity - Personnel Mode
Lifting Speed - Goods Mode
Lifting Speed - Personnel Mode
Power Source
Breaker Rating
Power Requirements
Start up Current (Max)
Running Current (Max)
Cage Dimensions (Internal)
Approx. Ground Space Required
Approx. Minimum Access Required
Approx. Gate Opening Dimensions
Geda 1500Z/ZP ED
100m
2000kg
7 persons
24 m/min
12 m/min
415v Electric
32a Three Phase C Type MCB
Dedicated 415v 32a Commando Socket
95a
27.6a
W 2900mm - L 1650mm
3200mm x 5000mm
Contact us
2000mm + (C/D) 3000mm (ED)
