MABER MBC500/120-M

Features & benefits

The MABER MBC 500 hoist is our exclusive solution for sites without three-phase power. The MBC500 can accommodate most building materials including 8’ x 4’ sheets of plasterboard or plywood that can be stood upright in the cage. Has a robust SWL of 500kg and the capacity to transport three people. What sets it apart is its versatility, allowing simultaneous transportation of both goods and personnel.
  • Single Phase operation with a 500kg SWL.
  • Platform Size 1600 X 1320mm.
  • Can be set up to 120m.
  • 3 Passengers / 500kg Goods hoist.
  • Lifting speed 12 m/m.
  • Different ramp configurations available to suit sites.

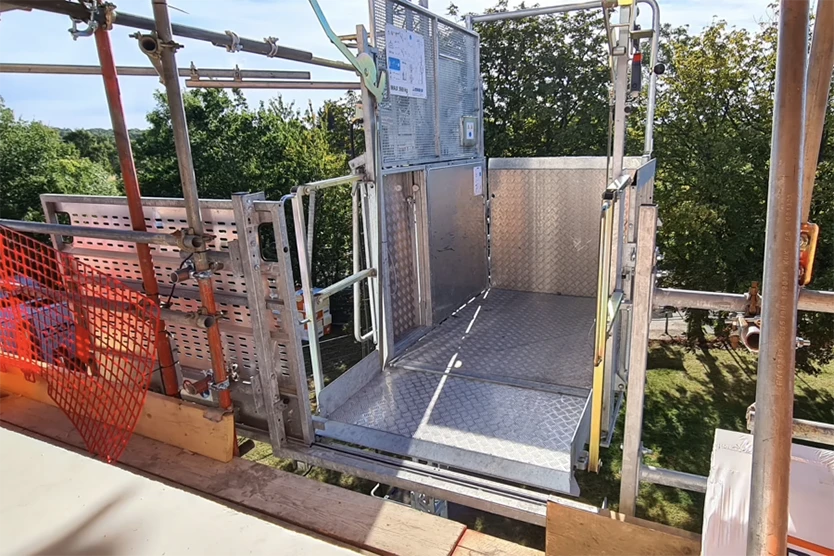

Platform at the landing position

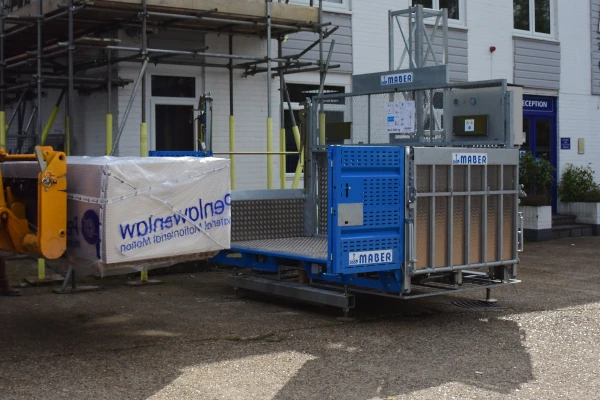

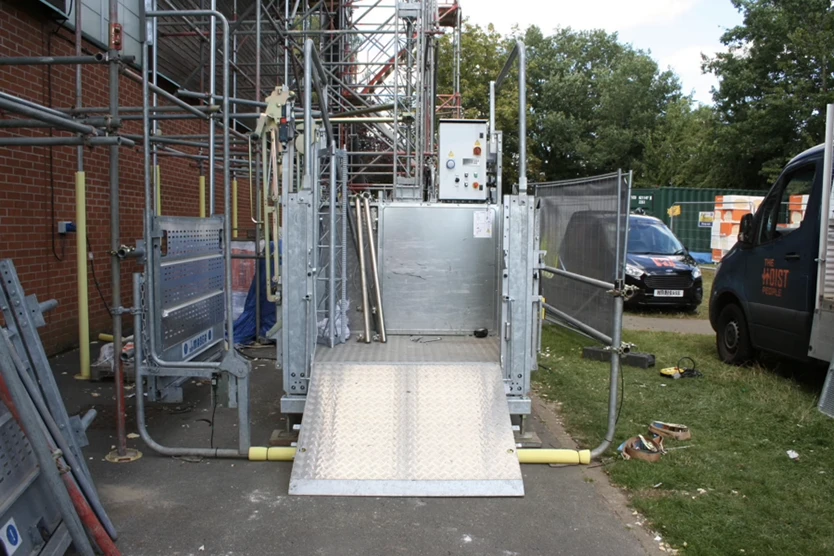

Platform at base

Technical data

Maximum Height
Lifting Capacity - Goods Mode
Lifting Capacity - Personnel Mode
Lifting Speed - Goods Mode
Lifting Speed - Personnel Mode
Power Source
Breaker Rating
Power Requirements
Start up Current (Max)
Running Current (Max)
Cage Dimensions (Internal)
Approx. Ground Space Required
Approx. Minimum Access Required
Approx. Gate Opening Dimensions
Maber MBC500
120m
500kg
3 persons
12 m/min
12 m/min
240v Electric
32a Single Phase C Type MCB
Dedicated 240v 32a Commando Socket
16a
12a
W 1320mm - L 1600mm
2920mm x 3050mm
Contact us
2000mm +

Related Products

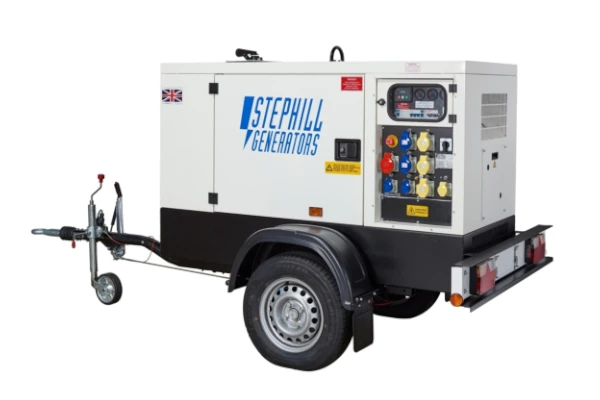

22 Kva Generator

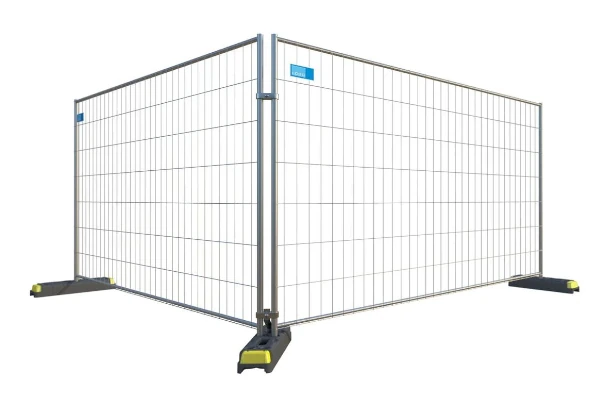

Fence Panels

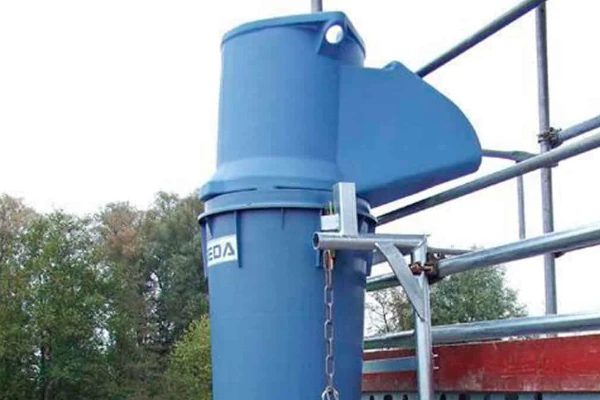

Rubbish Chutes

We're Here To Help

Have questions? Need a quote? Our team of experts is ready to help you with any queries you might have.

Alternative Goods and Passenger Hoists:

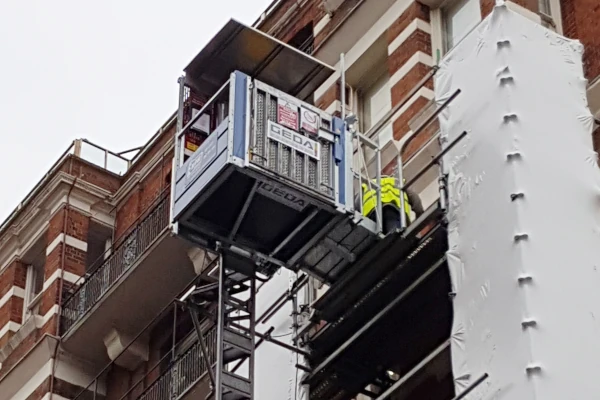

GEDA 300Z/ZP

Key Features

Max Height:

50m

Lifting Capacity:

300-500kg

Lifting Speed:

9-12 m/min

MABER MBC500

Key Features

Max Height:

120m

Lifting Capacity:

500kg

Lifting Speed:

12 m/min

GEDA 500Z/ZP

Key Features

Max Height:

50-100m

Lifting Capacity:

850-1000kg

Lifting Speed:

12-24 m/min

MABER MBC1000

Key Features

Max Height:

150m

Lifting Capacity:

1000kg

Lifting Speed:

12-24 m/min

GEDA 1200Z/ZP

Key Features

Max Height:

130m

Lifting Capacity:

1000-1500kg

Lifting Speed:

12-24 m/min

GEDA 1500Z/ZP-BS

Key Features

Max Height:

100m

Lifting Capacity:

2000kg

Lifting Speed:

12-24 m/min

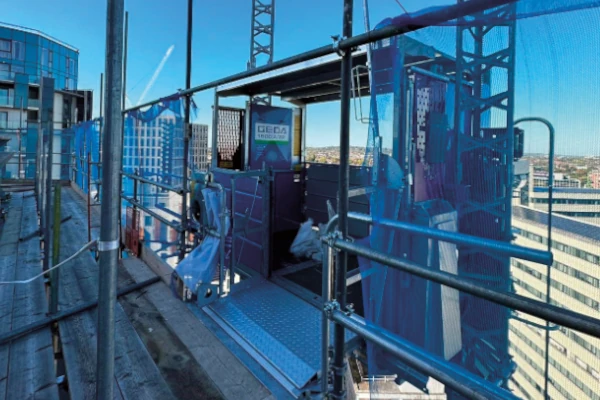

GEDA 1500Z/ZP-ED
