GEDA 200Z

Features & benefits

The GEDA 200Z is a compact and lightweight goods-only Platform hoist that is perfect for roofers and construction workers. The small footprint is ideal for restricted access where space is limited allowing it to fit through a doorway of 900mm. One unique advantage of this hoist is its ability to swing either to the left (standard configuration) or to be set up to swing to the right, depending on the site requirements. This feature is exclusive to the GEDA 200Z. Additionally, this hoist can be powered by the normal building-powered 240v ring circuit, eliminating the need for a designated power supply from a distribution board.
  • Lifting speed 25 m/min.
  • Small footprint, allowing it to fit through a doorway of 900mm.
  • Platform can be set up to turn to the left or to the right at landing level.
  • Small base area required.
  • Can be tied to scaffolding or wall.
  • 240v (single phase).
  • Safe mechanical interlocking gates.
  • Board rack available.
  • Can be paired with our 10kva generator.
  • Delivered in parts for ease of access.

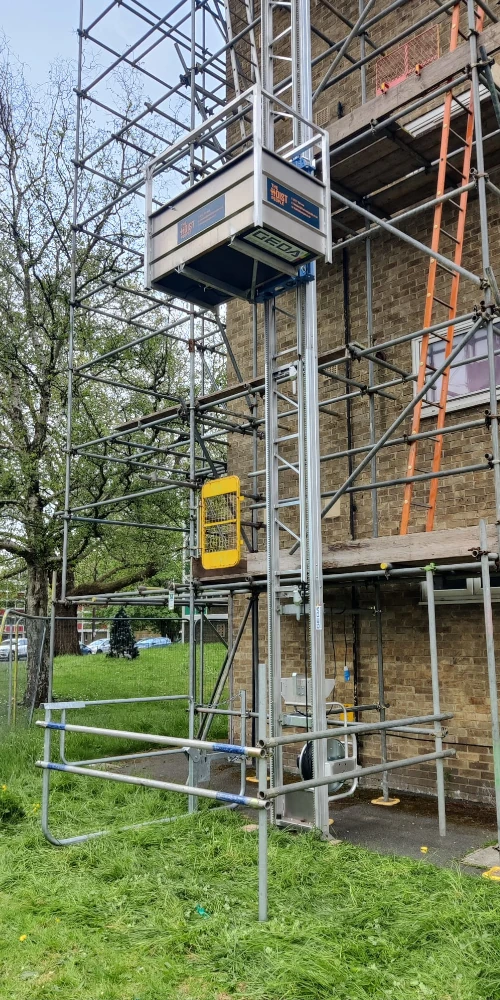

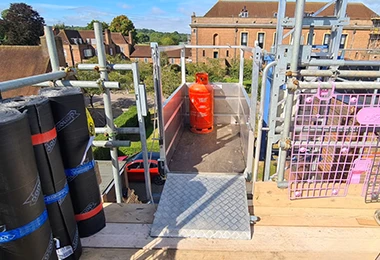

Hoist at the landing position

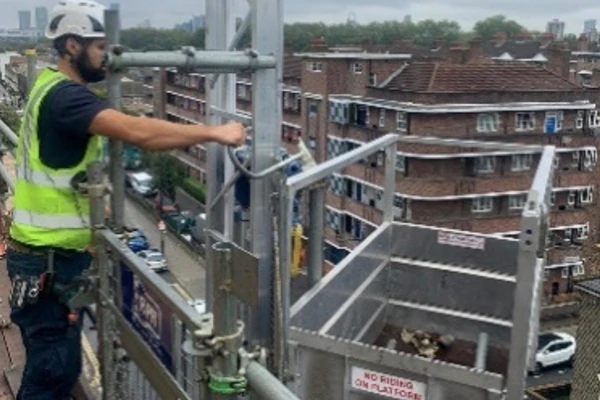

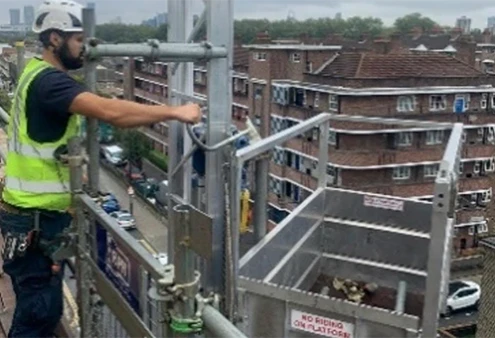

Swinging in platform

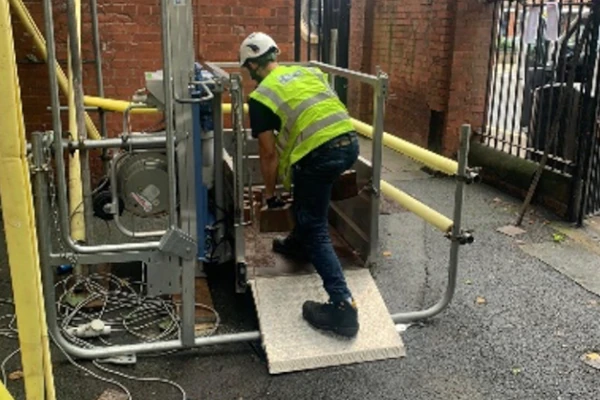

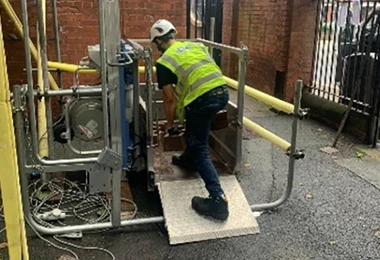

Loading at the base

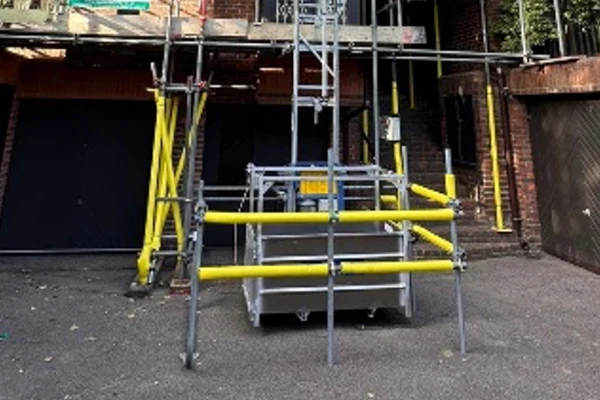

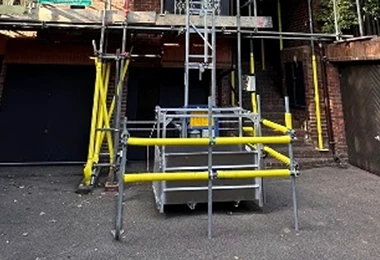

Hoist at the base position

Technical data

Maximum Height
Lifting Capacity - Goods Mode
Lifting Capacity - Personnel Mode
Lifting Speed - Goods Mode
Lifting Speed - Personnel Mode
Power Source
Breaker Rating
Power Requirements
Start up Current (Max)
Running Current (Max)
Cage Dimensions (Internal)
Approx. Ground Space Required
Approx. Minimum Access Required
Approx. Gate Opening Dimensions
Geda 200z
35m
200kg
n/a
25 m/min
n/a
240v Electric
16a Single Phase C Type MCB
Dedicated 240v 16a Commando Socket / 13a Domestic Socket Outlet
35a
8.6a
W 750mm - L 1400mm
1700mm x 1700mm
W 900mm x H 1800mm
1200mm +

Related Products

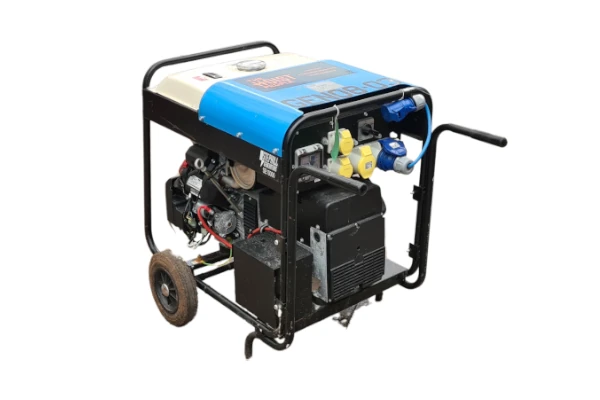

8 Kva Generator
