CHAIN HOIST 2000KG

Features & benefits

The Yale 2-Ton Chain Hoist is your go-to solution for lifting heavy building materials from street level up to gantries.

With a self-propelled motor mover, it ensures a smooth and effortless hoisting experience when shifting heavy goods.

Offering a 2000kg capacity, this hoist combines power and reliability.

Its motor mover not only enhances control but also adds an extra layer of safety.

Key features:

  • Lifting speed of 8 m/min.
  • 2000kg Lifting capacity.
  • Self-propelled Motor Mover.
  • Supplied with beam – 2.5m onwards.
  • Perfect for lifting palletised goods from lorries onto gantries.

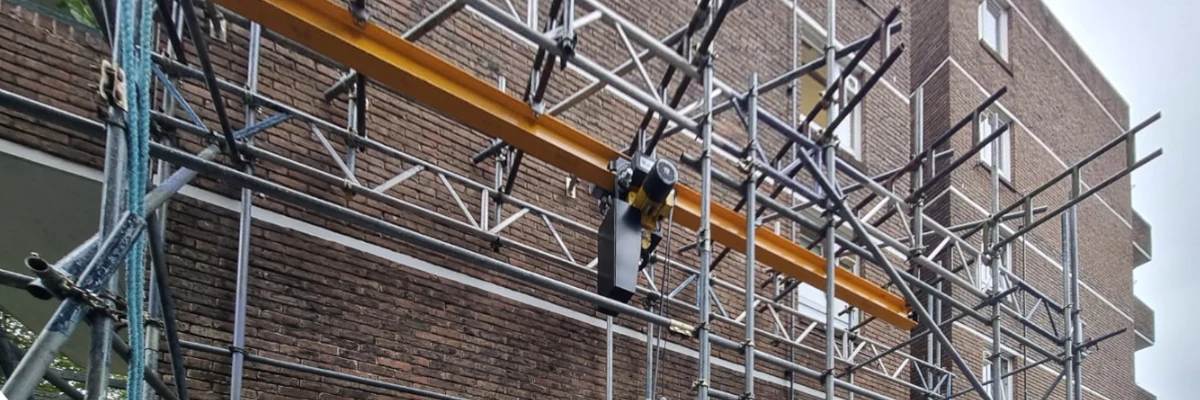

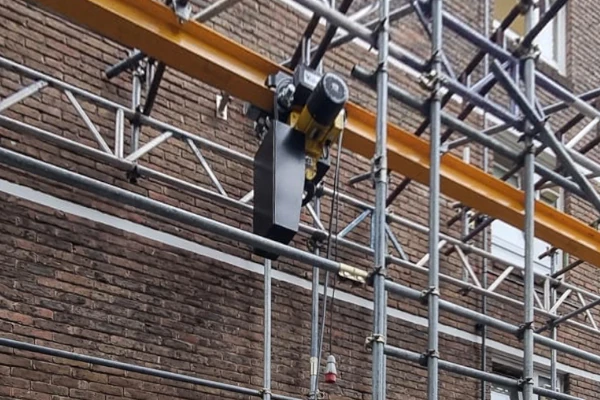

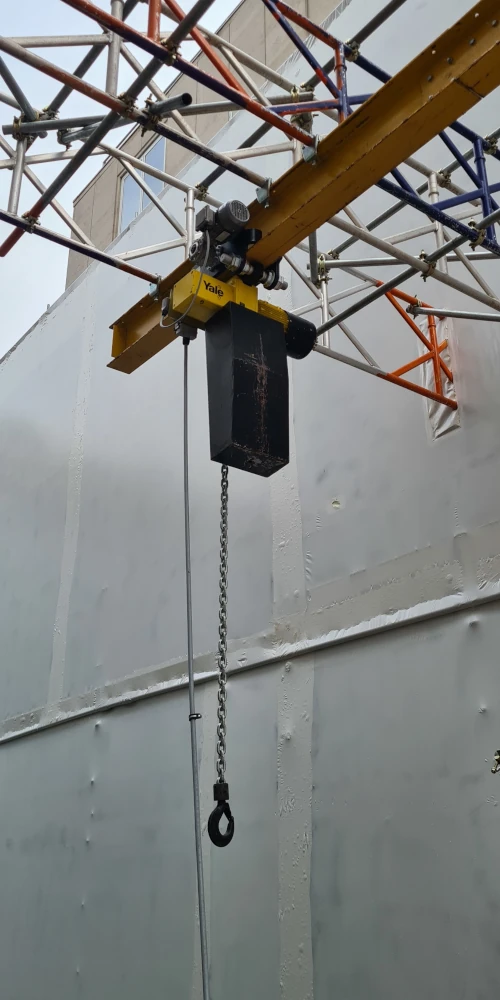

2000kg Chain Hoist mounted on a beam

Technical data

Maximum Height
Lifting Capacity - Goods Mode
Lifting Capacity - Personnel Mode
Lifting Speed - Goods Mode
Lifting Speed - Personnel Mode
Power Source
Breaker Rating
Power Requirements
Start up Current (Max)
Running Current (Max)
Cage Dimensions (Internal)
Approx. Ground Space Required
Approx. Minimum Access Required
Approx. Gate Opening Dimensions
Chain Hoist 2000kg
Up to 15m
2000kg
n/a
8 m/min
n/a
415v Electric
32a Three Phase C Type MCB
Dedicated 415v 32a Commando Socket
35a
7a
n/a
n/a
n/a
n/a
Model
A3, mm
A4, mm
A5, mm
A6, mm
B, mm
F, mm
I, mm
L1, mm
L2, mm
L3 (VTE), mm
L3 (VTEF), mm
L4, mm
L5, mm
L6 (VTE), mm
L6 VTEF), mm
O, mm
P (VTE), mm
P (VPEF), mm
P1, mm
S, mm
T, mm
Tmax, mm
CPE / CPEF 20-8
212
465
298
178
A = 98-180 / B = 180-300
150
142.5
209
262.5
292
296
213
312
342
346
125
197
205
229
b + 70
94
27

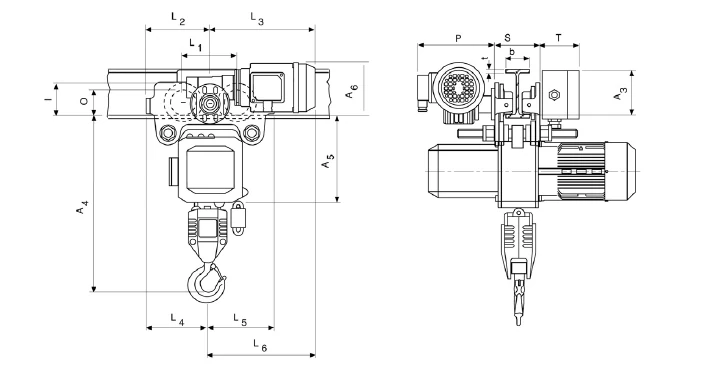

Model CPE/CPEF with integrated electric trolly

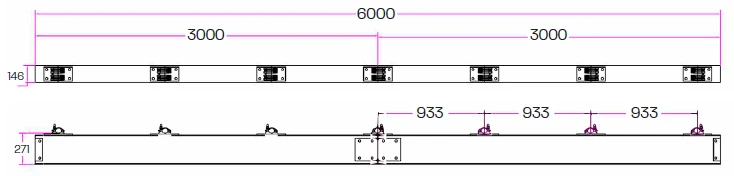

Section of beam showing the 933mm center suspension brackets

Related Products

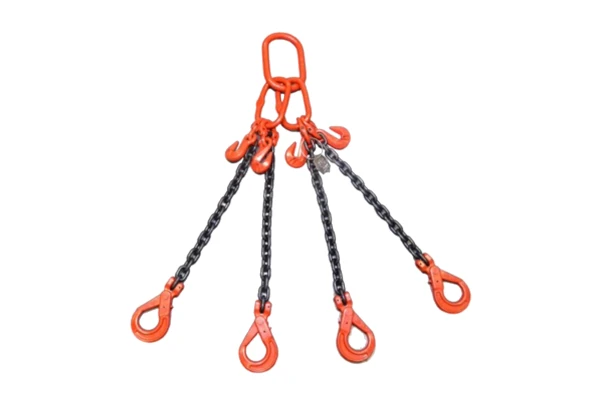

Chains

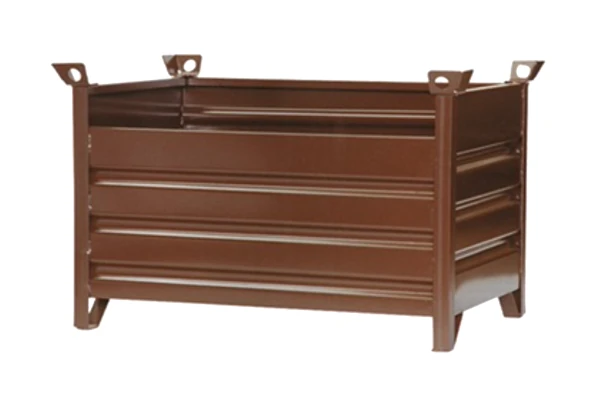

Stillage

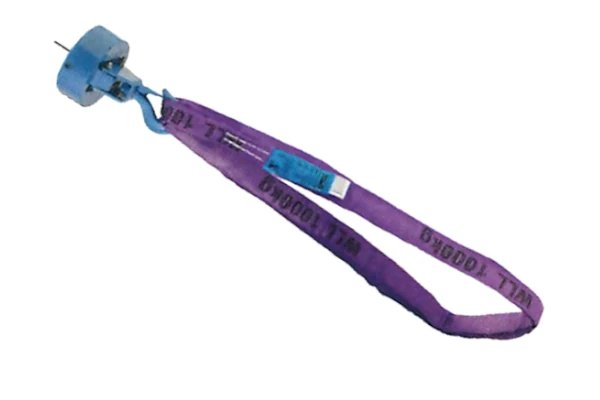

Slings
