NIKO RUNWAY TRACK

Features & benefits

The perfect track system to accompany the chain hoist for lifting and moving loads onto and around a scaffolding structure.

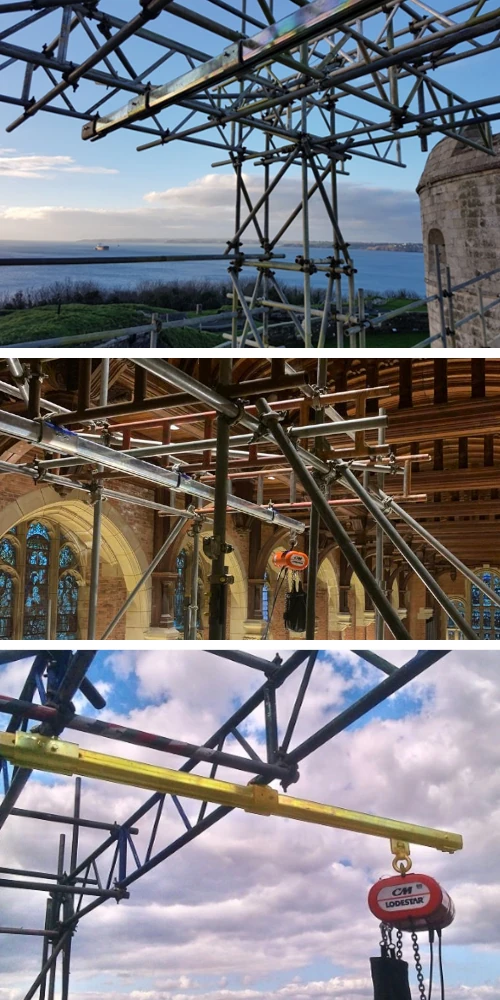

The NIKO system clamps to the existing scaffolding structure, lifts and moves loads up to 2000kg and is perfect to cantilever over the end of the scaffolding to lift loads up from a roadside or any site situation. Available in straight and curved sections.

  • Fast and lightweight track system.
  • Clamps to the existing scaffolding structure.
  • Lift and move loads up to 2000kg.
  • Cantilever over the end of the scaffolding.
  • Available in straight and curved sections.
  • Available in 1m, 2m or 3m lengths.

Technical data

Part Number
T26.T10
T26.T40
T27.T40
T27.T48
T27.T24
T27.T49
Description
Load Trolley with Rotating Eye
Load Trolley with Hole
Load Trolley with Rotating Eye
Load Trolley with Clevis Pin
Double Load Trolly with Eye
Double Load Trolley with Clevis Pin
Track Type
T26
T26
T27
T27
T27
T27
SWL
400kg
500kg
800kg
1000kg
1600kg
2000kg
Weight p/m
12.59kg
12.59kg
23.68kg
23.68kg
23.68kg
23.68kg
Support Centers
1.5m
1.5m
1.5m
1.5m
1m
0.75m

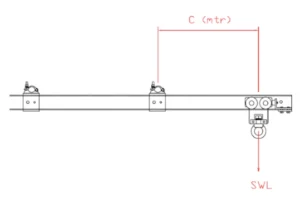

Cantilevers

Track cantilevers can be achieved, providing the system is supported correctly from a minimum of two fixed support points. Use the table below to calculate the maximum allowable cantilever for a system design.

Track Profile
24.000
25.000
26.000
27.000
Allowance Cantilever
C* SWL under 45kg.m
C* SWL under 100kg.m
C* SWL under 250kg.m
C* SWL under 500kg.m

NOTE: Cantilever length C should never exceed 1m
