CHAIN HOIST

Features & benefits

The electric chain hoist is tough and durable, designed to keep working in the most arduous applications. The perfect hoist to accompany the NIKO track system.

This Hoist is recognised and proven within the hire industry as the number one hoist, where high duty, combined with long heights of lifts are required.

The chain hoist is perfect for lifting loads from the roadside onto scaffold gantries.

The design enables easy access for installation and service.

Key features:

  • Fast and lightweight track system.
  • Clamps to the existing scaffolding structure.
  • Lift and move loads up to 2000kg.
  • Cantilever over the end of the scaffolding.
  • Available in straight and curved sections.
  • Available in 1m, 2m or 3m lengths.

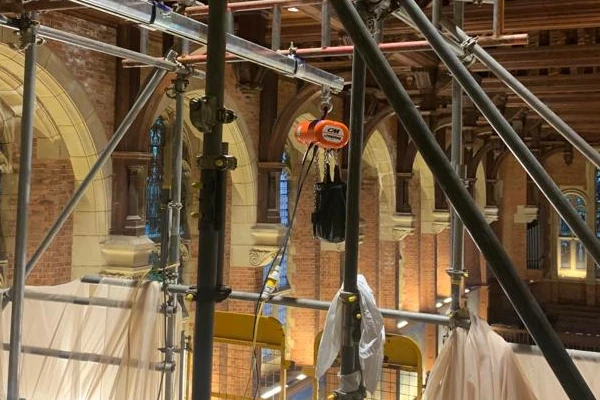

Chain Hoist used with NIKO Track system

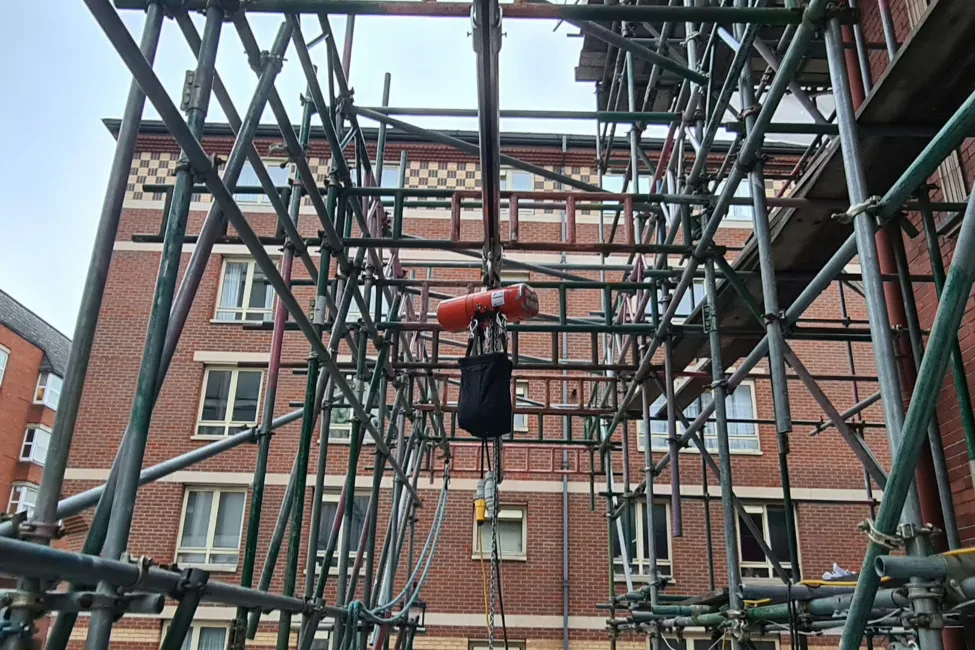

Chain Hoist used with NIKO Track system

Technical data

Maximum Height
Lifting Capacity - Goods Mode
Lifting Capacity - Personnel Mode
Lifting Speed - Goods Mode
Lifting Speed - Personnel Mode
Power Source
Breaker Rating
Power Requirements
Start up Current (Max)
Running Current (Max)
Cage Dimensions (Internal)
Approx. Ground Space Required
Approx. Minimum Access Required
Approx. Gate Opening Dimensions
Chain Hoist 500kg
Up to 30m
500kg
n/a
4 m/min or 8 m/min
n/a
110v Electric
16a
Dedicated 110v 16a Commando Socket or 3.3kw / 110v / 16a - Heavy-duty continous transformer. (Supplied by The Hoist People)
24a
8a
n/a
n/a
n/a
n/a
Chain Hoist 1000kg
Up to 30m
1000kg
n/a
4 m/min
n/a
110v Electric
32a
Dedicated 110v 16a Commando Socket or 3.3kw / 110v / 16a - Heavy-duty continous transformer. (Supplied by The Hoist People)
35a
12a
n/a
n/a
n/a
n/a

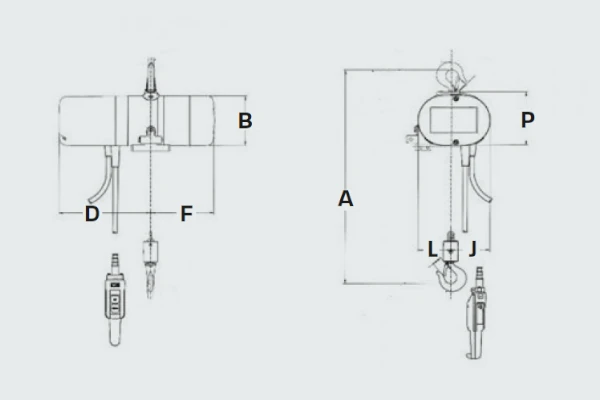

Model
A, mm
B, mm
D, mm
F, mm
J, mm
L, mm
P, mm
500kg (F Type)
413
156
279
197
100
122
168
500kg (J Type)
471
194
241
271
138
184
198
1000kg (L Type)
471
194
241
271
138
184
198
