Features & benefits

The GEDA MAXI 120S goods hoist is mountable at the scaffold base and provides swift hoisting at 60 m/min or 20 m/min.

With a motor drive at the bottom of the scaffolding and a lightweight swivel arm at the top, it allows easy assembly and quick relocation during construction. This makes a great choice for installing high scaffolding structures.

Versatile accessories cater to diverse construction needs.

  • Two-speed winch unit of either 60 m/min or 20 m/min.
  • Load capacity 120kg.
  • Compact and quick to install or can be raised to higher levels.
  • Height Range to 40m or 76m*.

* Normal max height is 40m but can be increased
by relocating the winch unit to a higher level.

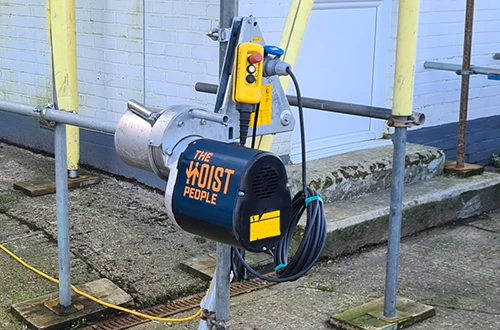

Two speed winch motor

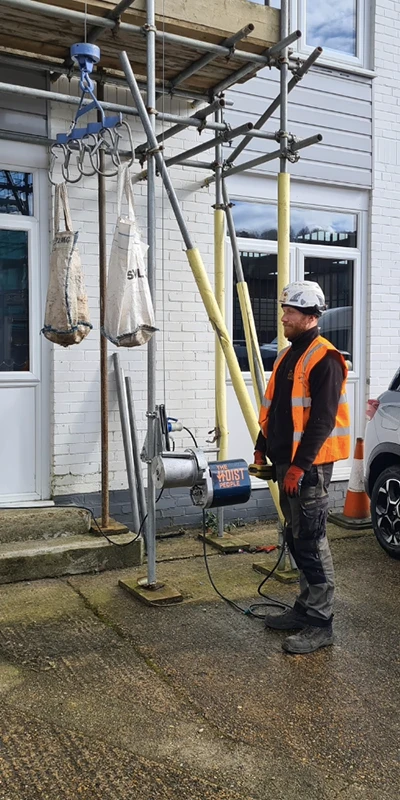

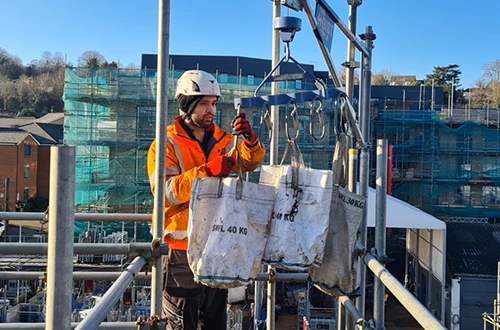

Unloading using the 5 hook attachment

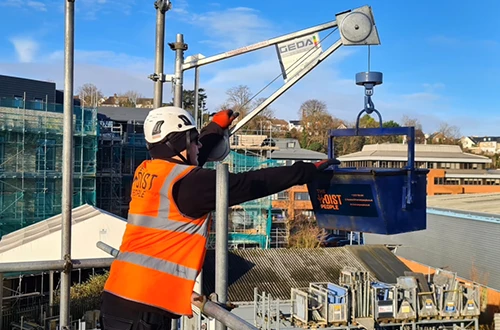

Unloading at the top of the scaffolding

Technical data

Maximum Height
Lifting Capacity - Goods Mode
Lifting Capacity - Personnel Mode
Lifting Speed - Goods Mode
Lifting Speed - Personnel Mode
Power Source
Breaker Rating
Power Requirements
Start up Current (Max)
Running Current (Max)
Cage Dimensions (Internal)
Approx. Ground Space Required
Approx. Minimum Access Required
Approx. Gate Opening Dimensions
Geda MAXI 120
40m, can be increased by 76m by moving the winch unit up the scaffolding
120kg
n/a
20 m/min (slow speed) - 60 m/min (high speed)
n/a
110v Electric
16a
Dedicated 110v 16a Commando Socket or 3.3kw / 110v / 16a - Heavy-duty continous transformer. (Supplied by The Hoist People)
16a
13.2a
n/a
Depends on load and site requirements
n/a
n/a

Related Products

5 Kva Generator

6 Kva Generator

Fence Panels

Rubbish Chutes

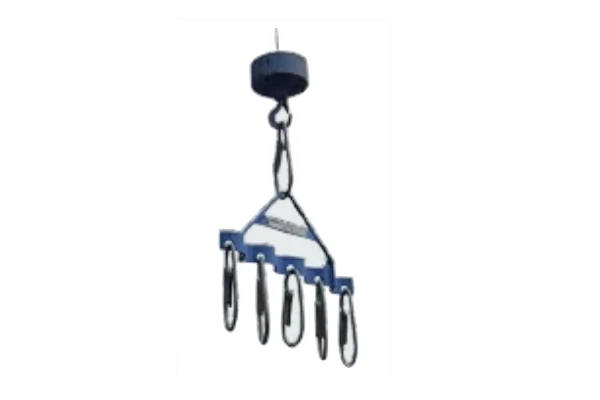

5 Hook Attachment
