SWING ARM HOIST

Features & benefits

Scaffold Hoists are the perfect equipment for any type of scaffolding. Scaffold Hoists are used by large and small contractors in a variety of applications.

This hoist is fixed at the top of the scaffold making free space at ground level and providing better access at the base of the scaffolding on site where ground area is restricted.

Key Benefits:

  • Electric 110v supply.
  • Up to 200kg SWL.
  • Serving a maximum height of 30m.
  • Fast easy set up time.
  • Upper limit safety device.
  • Lifting speed of up to 19 m/min.
  • Carrier options available.
  • Can be paired with a 5kva generator.

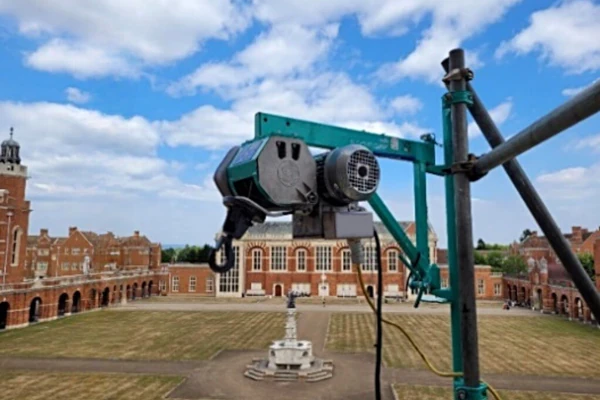

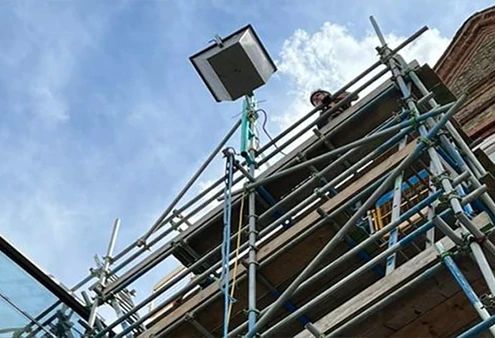

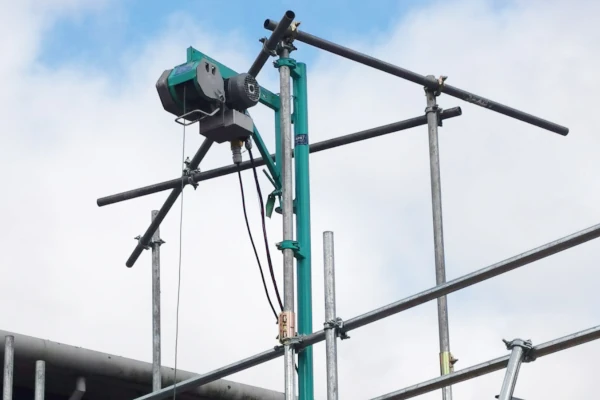

Scaffold Swing Arm Hoist

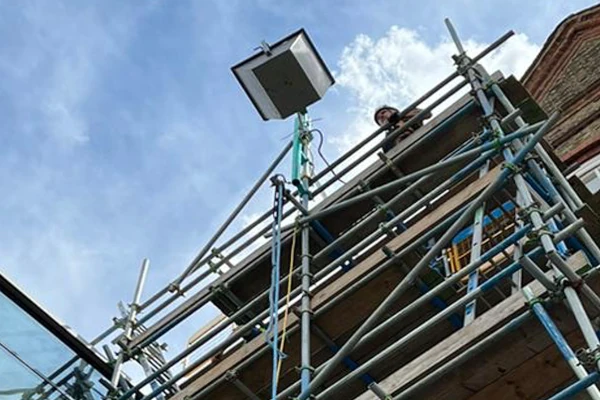

Scaffold Swing Arm Hoist

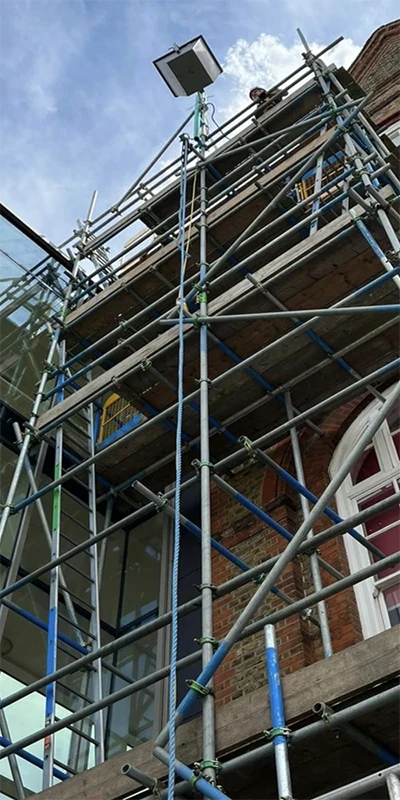

Scaffold Swing Arm Hoist

Technical data

Maximum Height
Lifting Capacity - Goods Mode
Lifting Capacity - Personnel Mode
Lifting Speed - Goods Mode
Lifting Speed - Personnel Mode
Power Source
Breaker Rating
Power Requirements
Start up Current (Max)
Running Current (Max)
Cage Dimensions (Internal)
Approx. Ground Space Required
Approx. Minimum Access Required
Approx. Gate Opening Dimensions

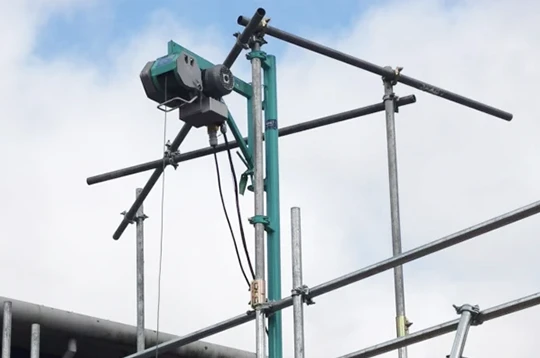

Scaffold Swing Arm Hoist
30m
200kg
n/a
19 m/min
n/a
110v Electric
16a
Dedicated 110v 16a Commando Socket or 3.3kw / 110v / 16a - Heavy-duty continous transformer. (Supplied by The Hoist People)
14.2a
8.2a
n/a
n/a
n/a
n/a

Related Products

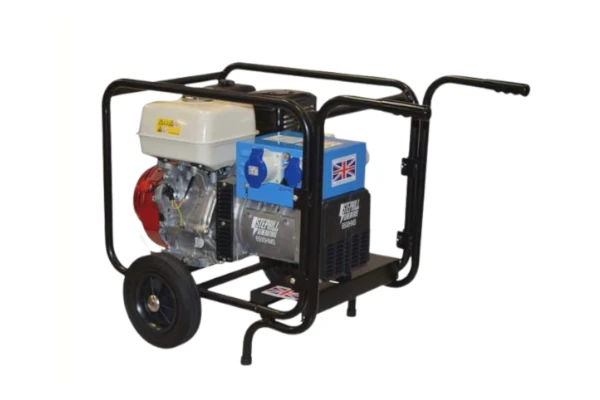

5 Kva Generator

DOWNLOAD SPEC SHEET

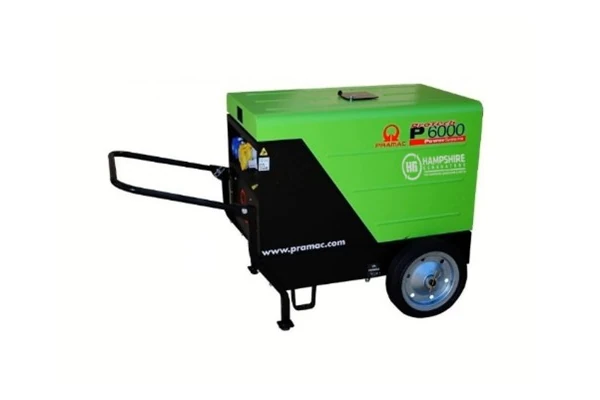

6 Kva Generator

DOWNLOAD SPEC SHEET

Fence Panels

Rubbish Chutes

Gas Cages

Slings

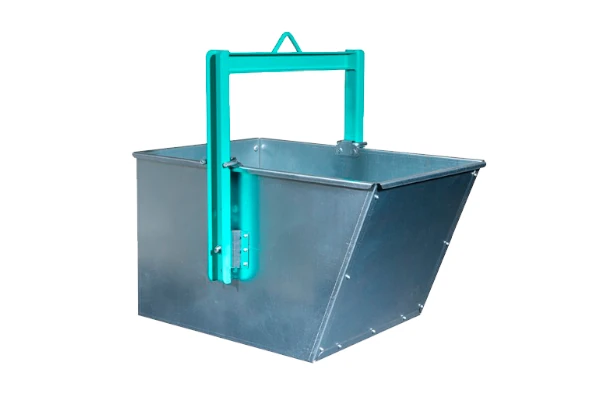

Tipping Bucket

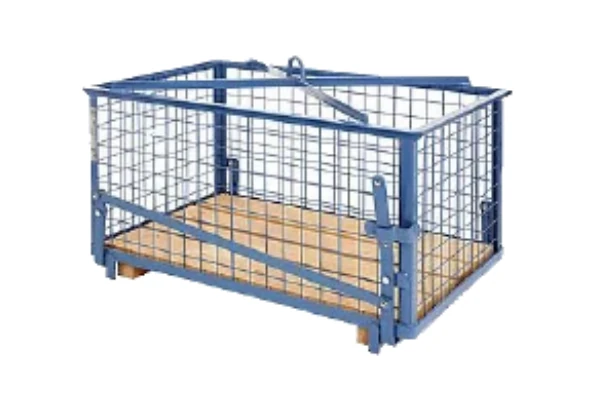

Materials Basket
