Ladder Hoist

Features & benefits

This versatile hoist has many advantages compared with platform hoists.

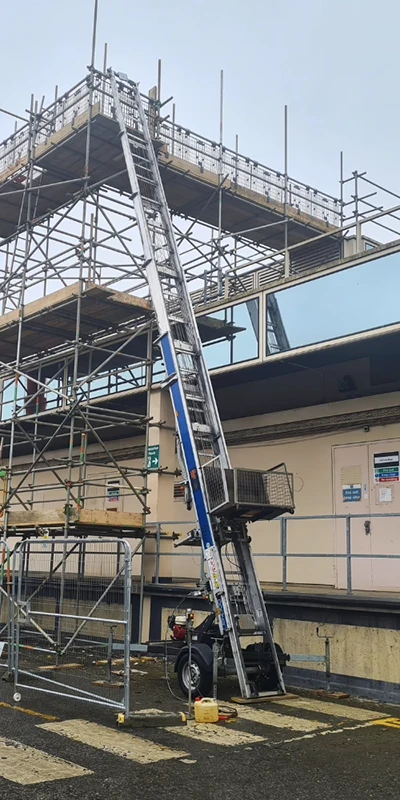

The trailer-mounted inclined elevator is generally installed serving the front of the scaffold, and in some instances can be installed straight against the building.

This telescopic elevator is mechanically erected, allowing for quick installation and reducing installation costs. Additionally, it can be easily repositioned on-site to a more convenient position as work progresses.

Powered by a petrol engine, with fast-hoisting speed, and two types of carriers, it is the answer for many roofing situations.

Fast set up in approx. 20 minutes.
Easily repositioned.
Operational from 4m – 23m
Lifting speed of 24 m/min.
Erected directly onto a roof or a scaffolding.
Up to 250kg weight capacity.
Integrated petrol engine.
Ground space required 5m x 5m approx.

Universal Platform at ground level

Adjustable Platform – unloading at the top

Universal Platform – unloading at the top

Technical data

Download Spec Sheet

Maximum Height

Lifting Capacity - Goods Mode

Lifting Capacity - Personnel Mode

Lifting Speed - Goods Mode

Lifting Speed - Personnel Mode

Power Source

Breaker Rating

Power Requirements

Start up Current (Max)

Running Current (Max)

Cage Dimensions (Internal)

Approx. Ground Space Required

Approx. Minimum Access Required

Approx. Gate Opening Dimensions

Bocker Simply 21

20.6m

Up to 250kg

n/a

24 m/min

n/a

Unleaded Petrol E10

n/a

See Platform type

5000mm x 5000mm

W 1470mm x H 2200mm x L 5950mm

n/a

Bocker Junior 18

17.8m

Up to 250kg

n/a

24 m/min

n/a

Unleaded Petrol E10

n/a

See Platform type

5000mm x 5000mm

W 1470mm x H 2200mm x L 5950mm

n/a

Bocker Junior 24

23.7m

Up to 250kg

n/a

24 m/min

n/a

Unleaded Petrol E10

n/a

See Platform type

5000mm x 5000mm

W 1470mm x H 2200mm x L 5950mm

n/a

Platform Types

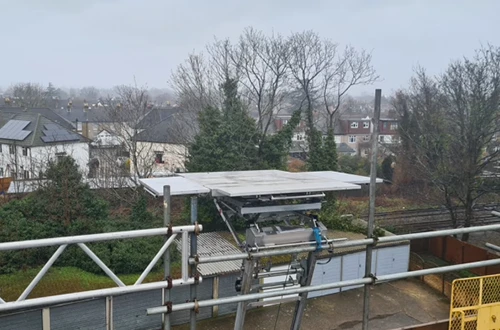

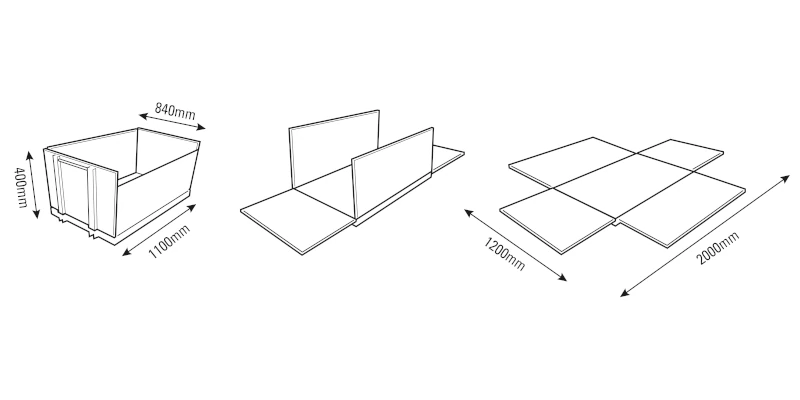

Adjustable Platform

This versatile adjustable carrier is useful in situations to lift solar panels, sheet materials, boxes or bags of goods that need to be transported on a level platform. This is due to the fact that the sides can be adjusted to be used as a box or a complete flatbed.

Flat bed platform size: 1200mm x 2000mm x 840mm

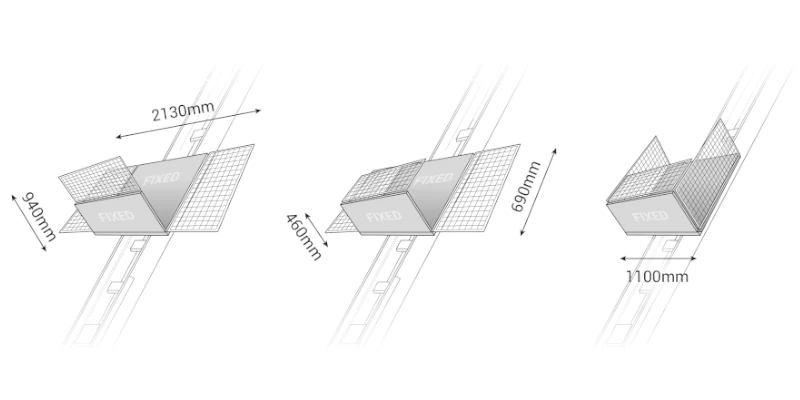

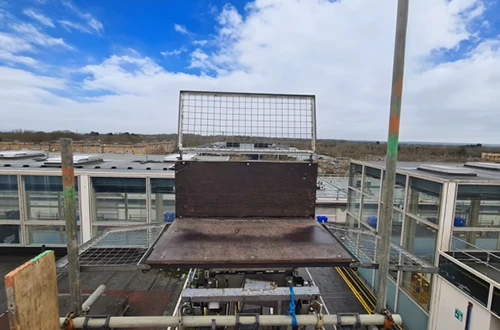

Universal Platform

A general-purpose platform with hinged side guards. Suitable for carrying general roofing materials such as tiles, slates, felt and bricks. With the hinged side guards down, it can carry much larger items such as insulation and general sheet materials.

Flat bed platform size: 2130mm x 690mm x 940mm
