GEDA GEDALIFT

Features & benefits

The GEDALIFT, a ladder-type inclined hoist, is a top choice for building and roofing jobs.

With a recommended upto 15m installation height, it attaches easily to scaffolding for safe unloading.

Available in 110v, it has up to 200kg load capacity, perfect for transporting various materials and waste removal. Additionally, it can be extended past eaves with a bend section, improving efficiency.

Our standard “Vario Platform” is included, featuring fixed back and adjustable side guards.

The optional “Adjustable platform” has three adjustable side guards for bulkier items, such as roof lights, solar panels and sheet materials.

  • Cost-saving hoist.
  • Fast and easy assembly.
  • Lifting speed 25 m/min.
  • Can be erected directly onto a roof or fixed to the handrail of scaffolding.
  • All components are portable so they can be carried through a standard doorway, allowing the hoist to be set up in areas that would otherwise be inaccessible e.g. courtyards.
  • Two carrier options are available depending on the types of materials to be lifted.
  • Very little loading force onto the scaffolding or building.

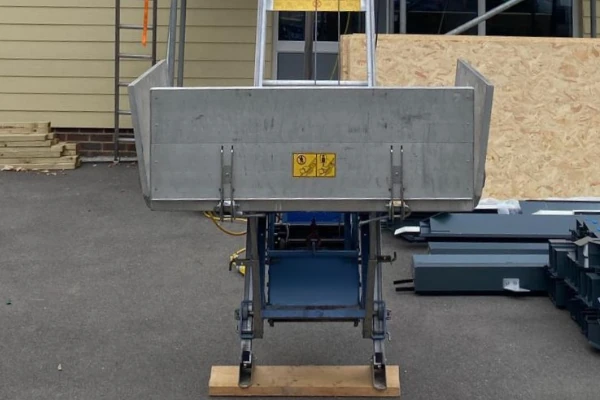

Vario Platform

Adjustable platform

Unloading at the top

Loading at the bottom

Technical data

Maximmum Height
Lifting Capacity - Goods Mode
Lifting Capacity - Personnel Mode
Lifting Speed - Goods Mode
Lifting Speed - Personnel Mode
Power Source
Breaker Rating
Power Requirements
Start up Current (Max)
Running Current (Max)
Cage Dimensions (Internal)
Approx. Ground Space Required
Approx. Minimum Access Required
Approx. Gate Opening Dimensions
Gedalift
15m
Up to 200kg depending on the angle of the ladder and height
n/a
25 m/min
n/a
110v Electric
16a
Dedicated 110v 16a Commando Socket or 3.3kw / 110v / 16a - Heavy-duty continuous transformer. (supplied by The Hoist People)
40a
18a
See Platform type
3000mm x 2000mm depending on the height of the ladder
All components fit through a doorway
n/a

Gedalift set up at 70° angle

Hoist Length
7m
9m
11m
13m
15m
Distance from scaffolding
2.3m
3m
3.8m
4.2m
5.1m
Maximum Loading Capacity
200kg
150kg
190kg
150kg
150kg

Platform Types

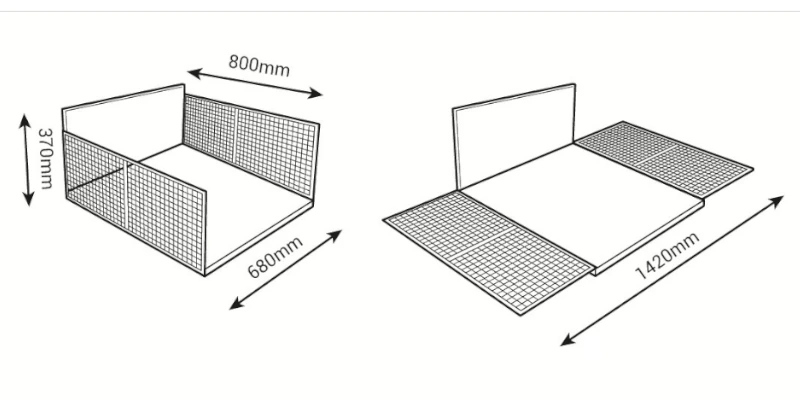

Vario Platform

A general-purpose platform with hinged side guards. Suitable for carrying general roofing materials such as tiles, slates, felt and bricks. With the hinged side guards down, it can carry much larger items such as insulation and general sheet materials.

Flat bed platform size: 1420mm x 680mm x 370mm

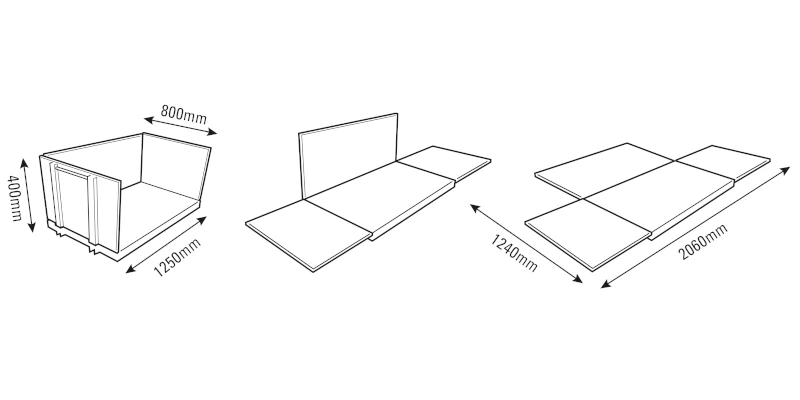

Adjustable Platform

This versatile adjustable carrier is useful in situations to lift solar panels, sheet materials, boxes or bags of goods that need to be transported on a level platform. This is because the sides can be adjusted to be used as a box or a complete flatbed.

Flat bed platform size: 2060mm x 1250mm x 400mm
